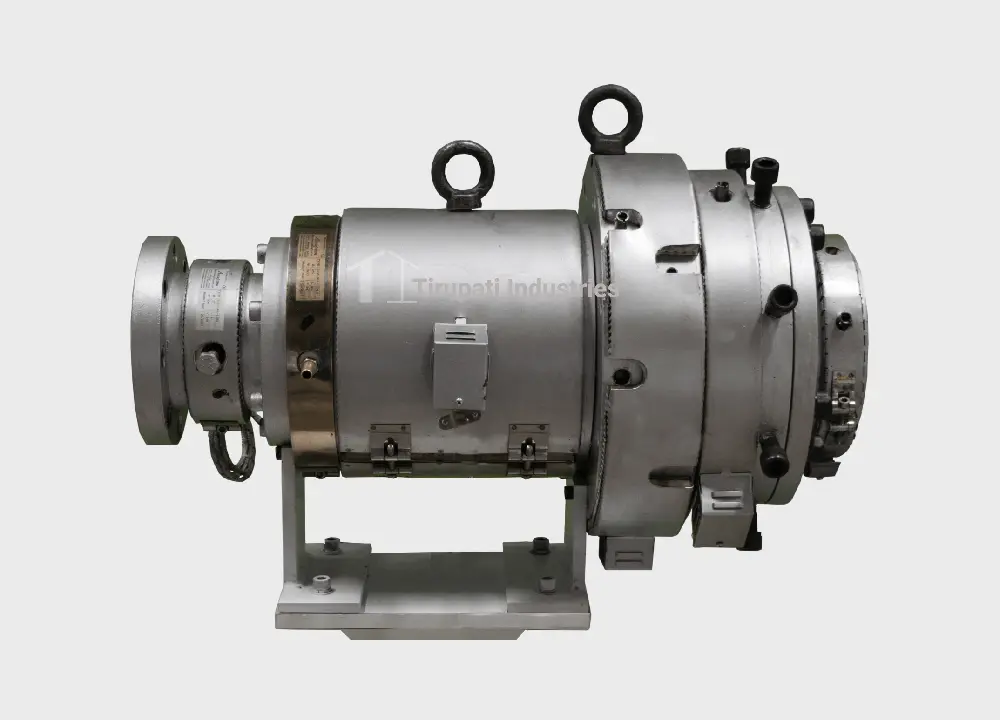

Extrusion plant die requires high accuracy and precision to deliver the qualitative output. At Tirupati industries, we manufacture mainly two types of extrusion plant die for HDPE and RPVC. Each die is made with state-of-the-art machine tools to ensure that you get the best quality pipe. With our team of experts we take care of each dimension tolerance with efficient quality control in each production step.

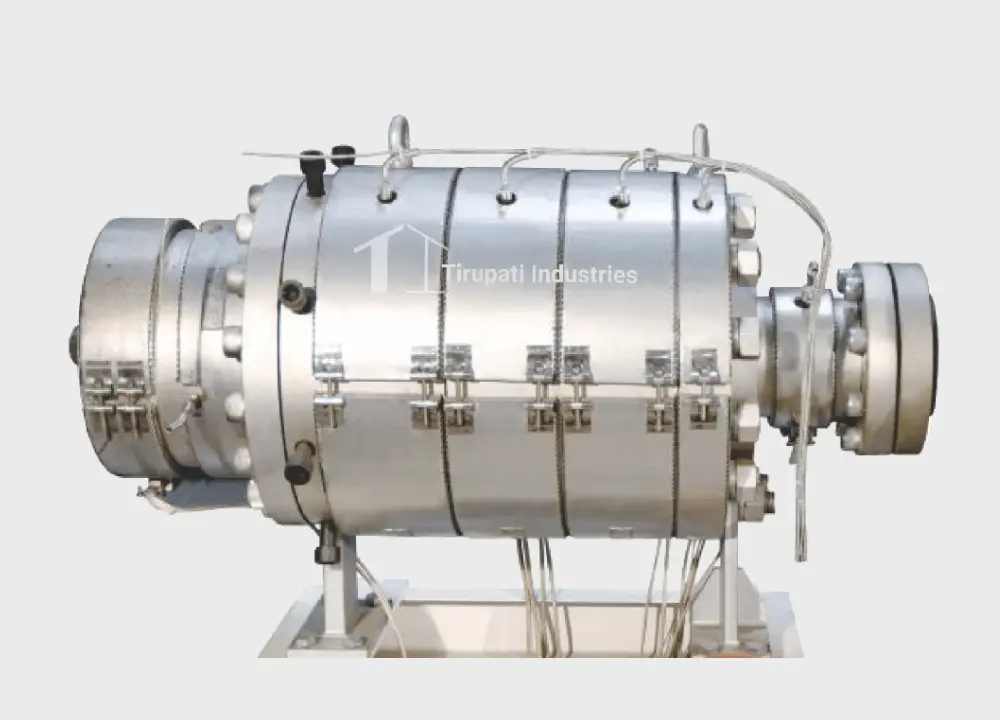

At Tirupati Industries, We Manufacturer PVC extrusion die up to 315 mm Pipe size For PVC Pipe Extrusion Plant.
Design: Spider design, which balances the melt flow by providing a more uniform exit velocity across the entire die exit.
| Model | W-63 | W-110LV | W-110HV | W-200LV | W-200HV | W-250 | W-315 |
| Pipe-Size (mm) | 20-63 | 20-110 | 20-110 | 32-200 | 63-200 | 75-250 | 90-315 |
| Output (Kg/hr) | 100 | 200 | 250 | 250 | 320 | 425 | 550 |
| Modal | Pipe-Size (mm) | Output (Kg/hr) |
| W-63 | 20-63 | 100 |
| W-110LV | 20-110 | 200 |
| W-110HV | 20-110 | 200 |
| W-200LV | 32-200 | 250 |
| W-200HV | 63-200 | 320 |
| W-250 | 75-250 | 425 |
| W-315 | 90-315 | 550 |
At Tirupati Industries, We Manufacturer PVC extrusion die up to 315 mm Pipe size For PVC Pipe Extrusion Plant.
Design: Spider design, which balances the melt flow by providing a more uniform exit velocity across the entire die exit.
| Model | WM-50 | WM-200 | WM-250 | WM-450 |
| Pipe-Size (mm) | 20-63 | 20-110 | 20-110 | 90-450 |
| Output (Kg/hr) | 200 | 500 | 800 | 1000 |
| Modal | Pipe-Size (mm) | Output (Kg/hr) |
| WM-50 | 20-63 | 200 |
| WM-200 | 20-110 | 200 |
| WM-250 | 20-110 | 800 |
| WM-450 | 90-450 | 1000 |
